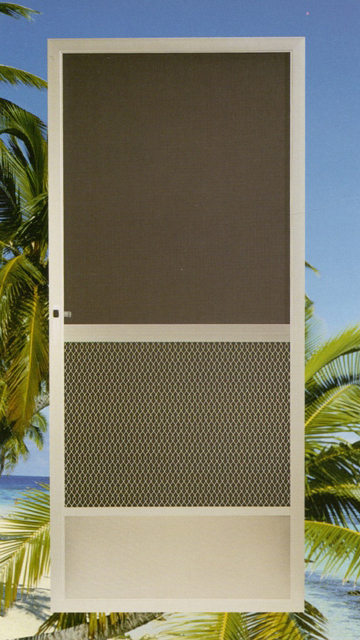

The Marina: Model A220

Quality Features

• Contemporary inside and outside door latches
• Inside lock, fail safe . . . can't accidentally lock owner out
• Quiet air coor closer, guaranteed for ten years
• Adjustable side and bottom channels for proper fit
• Three oilite bering hinges riveted to frame

Attractive design and robust construction have added to the popularity of this door. its all-aluminum components, inculding the extra-heavy-duty extruded aluminum frame, make the Marina one of our most requested models.

Finish Options:

Mill Finish, Bronze Enamel, White Enamel

Built to Last

• Extra-heavy-duty 2¹/₈" x ³/₄" extruded aluminum frame with rigid LOK-tite™ corners
• Three-inch-wide extruded aluminum pushbars
• Heavy patterned kickplate integral with main frame and extruded aluminum meeting rail
• Heavy-duty expanded aluminum grill locked directly to main frame
• Highest quality pushbutton lock, pneumatic closer, oilite bearing hinges
• Installation instructions included
• Charcoal 18" x 16" x 0.011 mesh fiberglass screening

Sizes:

3-0x6-8, 2-8x6-8, 2-6x6-8, Special Sizes

Special Doors

Adjustable Sizes: Size Width Tolerance Height Tolerance 3-0 x 6-8 355/8" to 365/8" 793/4" to 811/2" 2-8 x 6-8 315/8" to 325/8" 793/4" to 811/2" 2-6 x 6-8 295/8" to 305/8" 793/4" to 811/2"

French Doors

Available in Aspen, Colonial, Full View, Marina, Monterey, and Riviera models only.
