The Viewguard Security Screen Door

Rest Easy

Now you can let the cool breeze in and keep intruders out without compromisin the apperance of your home. Finally you can experience total security resorting to bars or unsightly steel grills.

Higher Security

True Frame® security screen doors incorporate the latest advances in high tensile stenght materials and construction.

Lower Cost

When compared to alternative solutions for security, True Frame® security screen doors are built to last and are corrosion resistant.

Greater Airflow

Stainless steel marine grade mesh screen optimizes airflwo, and maximizes security. Strenght and beauty in perfect harmony.

Save Energy - Feel Safe

Opening our door in the evening reduces air conditioning costs in hot weather.

Superiror Style

Parts
Compare this screen door with anything else on the market today, and we think you will agree, Tru-Frame® has a lock on security and style.

Sizes:

Size (in.) Fits Width Fits Height
30" x 80" 30" to 311/4" 793/4" to 81"
32" x 80" 32" to 331/4" 793/4" to 81"
36" x 80' 36" to 371/4" 793/4" to 81"

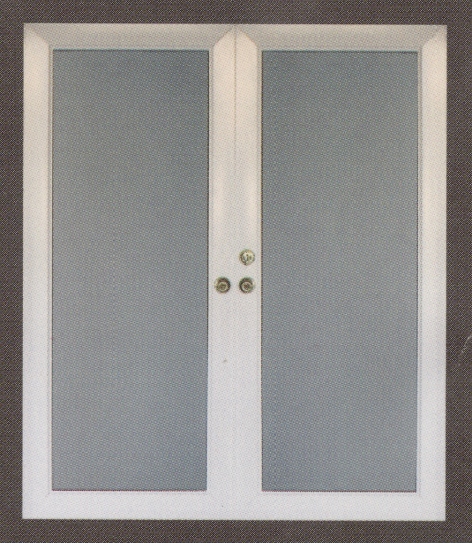

French Door Option

Tru-Frame® security screen doors are also available with a French Door kit for double doors, and include all installation hardware except the door knob and deadlock wich are optional.

Colors Available

Bronze Anodized or White Thermal Setting Polyester. Also custom special colors available.

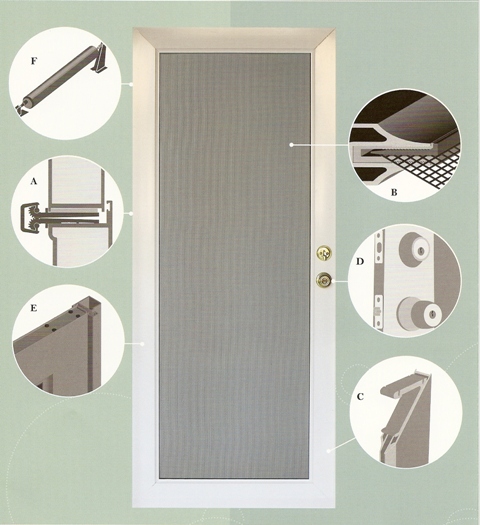

Parts

  1. Continuous Geared Hinge System - Tested to open and close 100,000 times - the most reliable and durable in the security door industry.
  2. Stainless Steel Mesh - Made from marine grade stainless steel mesh (painted black) offers corrosion resistance in salt air environments. Stainless mesh in integrated into the heavy duty aluminum door frame using a PVC clamp that prevents galvanic deterioration.
  3. High Tensile Strenght Aluminum Extruded Frame - Manufactured from 6063-T5 architectural grade metal and engineered using 50% thicker material than other manufacturer's steel doors. Extruded aluminum corners lock the frame together using eight stainless steel screws.

  4. Virtually Pick Proof - All Tru-Frame® security screen doors are fitted with an integral cover that prevents entry. Optional locksets and deadbolts are provided from the facotry or may be purchased separately to match existing prime door lock.
  5. Pre-hung Frame - simple and seamless heavy duty pre-hung frame with stainless steal one way scres that prevent tampering and are concealed with nylon caps.
  6. Heavy Duty Pneumatic Closer Option - With wind chain to adjust closing speed of door.
French Door
